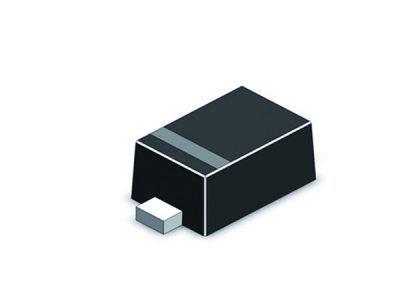

SOD523封裝系列ESD保護器，具有反應速度快，導通電壓低、體積小、集成度高、同時實現多條數據線保護，電容值較低，是理想的高頻數據保護器件，多樣化封裝,完全可實現在不同位置、空間上靈活的集成化ESD保護。
封裝:SOD-523
| Part No. | VRWM .max (V) | VBR .min (V) | CJ .typ (pF) | Ppp @8/20μs (W) | Ipp @8/20μs (A) | IR .max (μA) | Contact (kV) | Channel | Inner Diagram | Package | |
| JED523-5V | 5 | 6.0 | 60 | 100 | 8 | 0.2 | ±30 | 1 |  | SOD-523 |  |
| JED523-15V | 15 | 16.5 | 50 | 320 | 10 | 0.2 | ±30 | 1 | | SOD-523 | |
| JED523-3.3V-C | 3.3 | 3.5 | 12.5 | 80 | 8 | 0.2 | ±30 | 1 |  | SOD-523 | |
| JED523-5V-C | 5 | 6.0 | 20 | 80 | 8 | 0.2 | ±30 | 1 | | SOD-523 | |
| JED523-5V-LC | 5 | 6.0 | 2.5 | - | - | 0.2 | ±8 | 1 | | SOD-523 | |
| JED523-5V-ULC | 5 | 6.5 | 0.3 | 100 | 4 | 0.2 | ±22 | 1 | | SOD-523 | |
| JED523-5V-UL2 | 5 | 6.0 | 0.3 | 80 | 5 | 0.5 | ±20 | 2 |  | SOD-523 | |
VRWM：Reverse Working Voltage
VBR：Snap-Back Voltage
CJ：Junction Capacitance
Ppp：Peak Pulse Power
Ipp：Peak Pulse Current
IR：Reverse Leakage Current
Contact：IEC 61000-4-2;Contact Discharge
